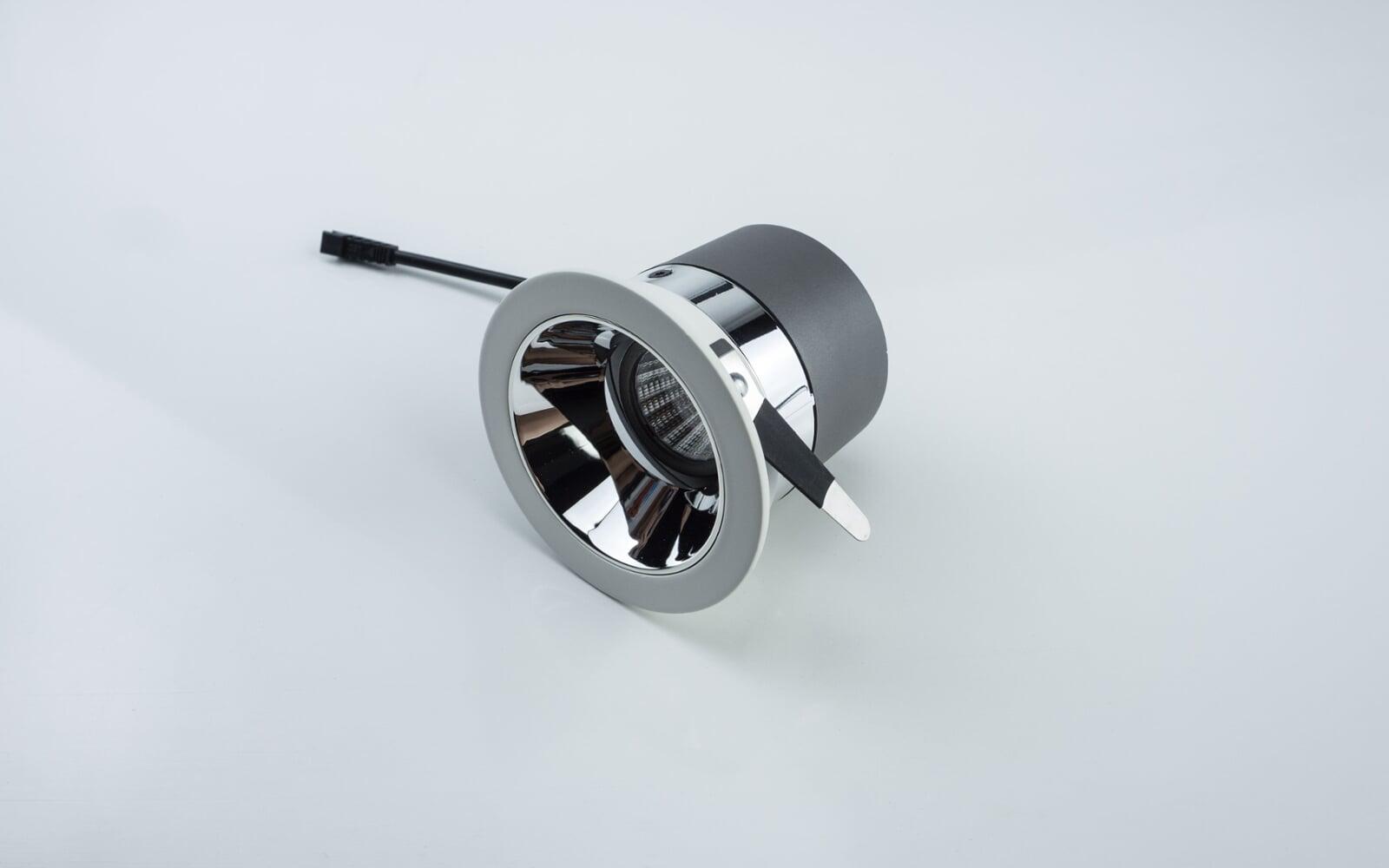

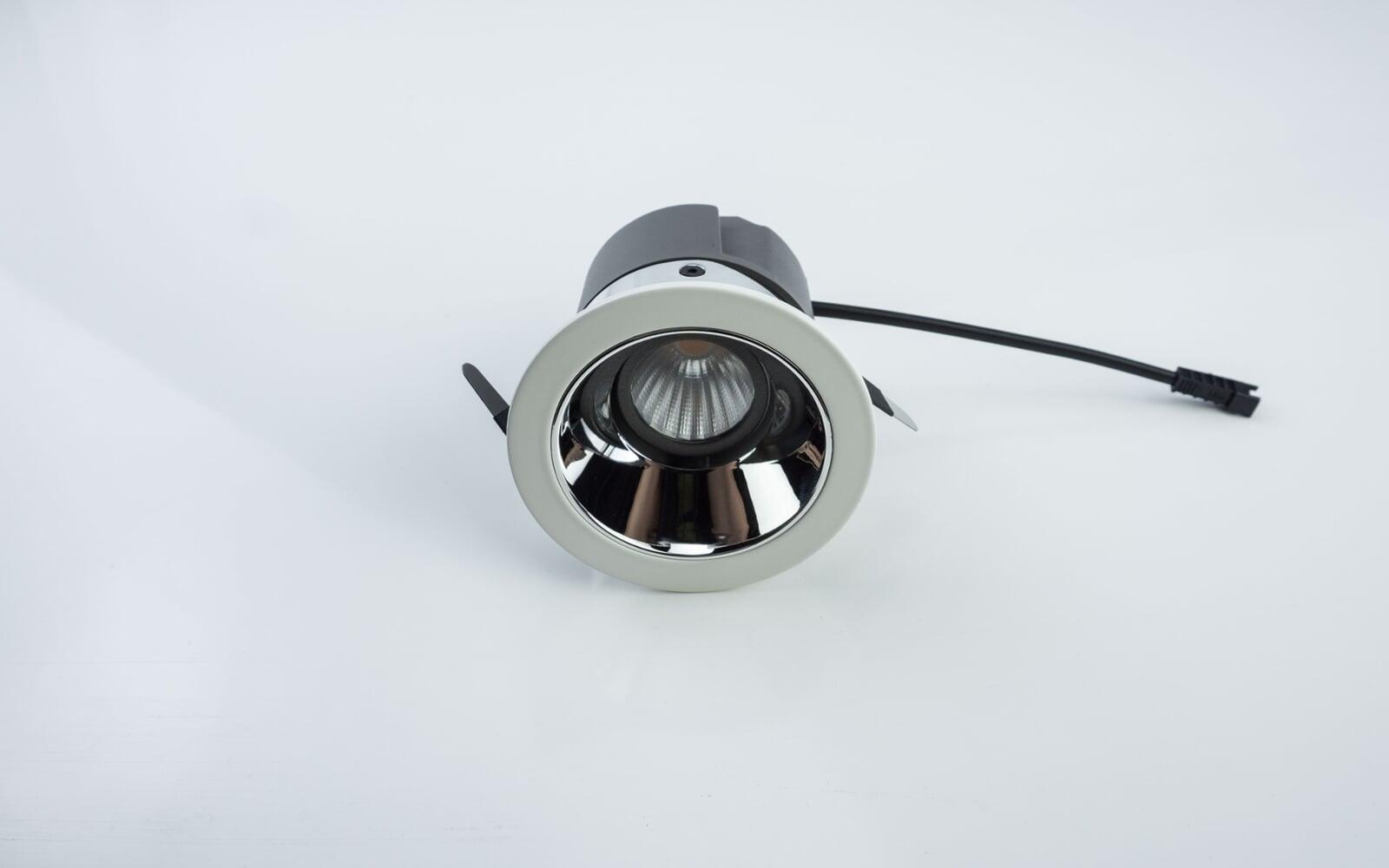

Surface Mounted Downlight 5-25W LN-CRP-ROUND-4
LN-CRP-ROUND-5
- Max. 5-7W
- CREE CRI>80
- Beam angle 15/24/38
Need more help？
Power:*
5-7W
Input Voltage:
220-240V
Dimming：
On/Off
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE
LED Chip Qty:
1pcs
LED Type:
COB
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
> 80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
15°,24°,38°
Luminous Flux (LED):*
600lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
350lm (at 24°)
Lumen Efficiency (Luminare):*
70lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling surface decoration
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
black
IP Grade:
IP20
Size:
D65mm*H65mm
Cutout:
55mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
LN-CRP-ROUND-10
- Max. 10W
- CREE CRI>80
- Beam angle 15/24/38
Need more help？
Power:*
10W
Input Voltage:
220-240V
Dimming：
On/Off
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE
LED Chip Qty:
1pcs
LED Type:
COB
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
> 80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
15°,24°,38°
Luminous Flux (LED):*
1200lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
700lm (at 24°)
Lumen Efficiency (Luminare):*
70lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling surface decoration
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
black
IP Grade:
IP20
Size:
D85mm*H80mm
Cutout:
75mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
LN-CRP-ROUND-15
- Max. 15W
- CREE CRI>80
- Beam angle 15/24/38
Need more help？
Power:*
15W
Input Voltage:
220-240V
Dimming：
On/Off
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE
LED Chip Qty:
1pcs
LED Type:
COB
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
> 80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
15°,24°,38°
Luminous Flux (LED):*
1800lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
1125lm (at 24°)
Lumen Efficiency (Luminare):*
70lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling surface decoration
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
black
IP Grade:
IP20
Size:
D105mm*H100mm
Cutout:
95mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
LN-CRP-ROUND-25
- Max. 25W
- CREE CRI>80
- Beam angle 15/24/38
Need more help？
Power:*
25W
Input Voltage:
220-240V
Dimming：
On/Off
Class：
III SELV
Ambient Temperature：
0 - 40℃
Relative humidity：
<85%
LED Brand:
CREE
LED Chip Qty:
1pcs
LED Type:
COB
C.C.T.：
3000K, 4000K, 6000K
Color Randering Index:
> 80,>90
Lumen Maintenance:
LM80
SDCM:
4
Beam Angle:
15°,24°,38°
Luminous Flux (LED):*
3000lm
Lumen Efficiency(LED)：*
120lm/W
Luminous Flux (Luminare):*
1875lm (at 24°)
Lumen Efficiency (Luminare):*
75lm/W (at 24°)
Body & Heatsink:
Die-casting Aluminum
Optics:
Optical PMMA
Installation:
Ceiling surface decoration
Surface Treament:
Powder-coated, Ring: sanded white
Housing Color:
black
IP Grade:
IP20
Size:
D130mm*H125mm
Cutout:
115mm
Certificates:
CE
- different power, CRI, C.C.T..
- other LED Brands, CREE, OSRAM, SAMSUNG, Bridgelux, etc.
- other Drivers, OSRAM, PHILIPS, Meanwell, KEGU, Lifud, etc.
- dimming functions: TRIAC, 0/1-10V, DALI, Mesh, 2.5G
- emergency kit with specific duration.
